Organic Light- Emitting Diodes (OLEDs) are thin—film LED displays that don’t require a backlight to function. The material emits light when stimulated by an electrical current, which is known as electroluminescence. They consume less energy, produce c – i.e. they can be bent and rolled up when they’re not being used.
Read the text again and answer these questions.
1.What do CRT and LCD stand for?
2. How is the screen size measured?
3. What technology is used to measure the brightness of a display?
-TFT (thin film transistor ) technology is used to measure the brightness of a display.
4. What unit of frequency is used to measure the brightness of a display?
— cd/m2 (candela per square metre ) is used to measure the brightness of a display.
5. What substance produces light and colour when hit by electrons in a CRT monitor?
-Phosphor dot produces light and colour when hit by electrons in a CRT monitor.
6. What are the three advantages of OLED displays?
— The three advantages of OLED displays are: consume less energy, produce brighter colours and are flexible
-A PENDIX 6. LISTENING.
Listen to five customers in a computer shop describing their display device needs. Which device (a-e) would you recommend to each person? In pairs, discuss your choices and give reasons for them.
Speaker 1__________a________________ Speaker 4_________d_____________________
Speaker 2________b__________________ Speaker 5________c______________________
Lesson 6. Output devices
I. Before reading the text try to answer these questions.
1. What types of displays do you know?
2. How can you change the picture using the controls?
3. Can you watch TV on your PC monitor?
II. Complete these definitions with words from the box. Then read the text and check your answers.
| Resolution pixel aspect ratio colour depth video adapter plasma screen |
1. ______– the smallest unit on a display screen or bitmapped image (usually a coloured dot)
2. _______– an expansion card that generates the video signal sent to a computer display
3. ________– the width of the screen in proportion to its height
4. ________– also called gas discharge display
5. ________– the number of pixels contained in a display, horizontally and vertically
6. ________– the number of bits used to hold a colour pixel; this determines the maximum number of colours that can be displayed
III. Read the text again and answer these questions.
1. What do CRT and LCD stand for? 2. How is the screen size measured? 3. What technology is used in active-matrix LCDs? 4. What unit of frequency is used to measure the brightness of a display? 5. What substance produces light and colour when hit by electrons in a CRT monitor?
Displays, often called monitors or screens, are the most-used output device on a computer. They provide instant feedback by showing text and graphic images.
The monitor or screen is the computer’s usual means of communicating with the user. The term “monitor” probably comes from the fact that the user monitors, or keeps track of, what the computer is doing by watching the display on the screen. Screens vary in size, resolution, colour and graphics capabilities, and the technology used to produce the screen image.
Resolution refers to the number of dots of colour, known as pixels (picture elements), contained in a display. It is expressed by identifying the number of pixels on the horizontal and vertical axes.
The size of display is described by the aspect ration and the screen size. Historically, computer displays, like most televisions, have had an aspect ratio of 4:3 – the width of the screen to the height is four to three. For widescreen LCDs, the aspect ratio is 16:9.
Inside the computer there is a video adapter, or graphics card, which processes images and sends signals to the monitor. CTR monitors use VGA (video graphics adapter) cable, which converts digital signals into analogue signals. LCDs use a DVI (digital video interface) connection.
Colour depth refers to the number of colours a monitor can display. This depends on the number of bits used to describe the colour of a single pixel.
Most desktop displays use Cathode Ray Tube (CRT) or Liquid Crystal Display (LCD) technology, while portable computing devices incorporate LCDs.
The CRT is the oldest and most commonly used display technology in the computer world. The principle of operation is similar to a television set in that a tube similar to a picture tube projects dots of coloured light onto different parts of the screen to form letters and other images. However, the process by which information is transferred from computer memory to a screen image is differentfrom the reconstruction of a television picture from a broadcast signal, as will be explained shortly.
Monochrome (one colour) monitors display either one colour (most commonly yellow, green, or white) on a black background, or else black on a white background. The colour is determined by the chemical makeup of the phosphor, a substance that coats the inner surface of the CRT and generates the display by glowing when excited by light.
Colour monitors have three phosphor dots for each point (or pixel, for a picture cell) on the screen that can be activated by the scanning beam. Each of these dots will glow red, blue, or green when excited by light. Since these are the three light primaries, other colours can be produced by exciting more than one of the dots for a given pixel. More shades of colour can be generated if the intensity of the dots can be varied.
As in a television set, the phosphor dots are activated by a light beam that scans the screen in horizontal lines, moving from top to bottom. Scan time or refresh rate is a measure of how long the beam takes to make a complete pass over the screen. Scan time is important because the excited phosphor dots stay bright for only a limited time (this time is called the “persistence” of the phosphor). Display quality therefore involves matching the scan time with the characteristics of the phosphor. If the scan is too slow for the phosphor, the display will flicker because some phosphor dots will have a chance to grow visibly dim before the beam comes back to recharge them. A high-persistence phosphor, however, will leave a “ghost” image on the screen for a noticeable time after the light stimulus is removed. The faster scanning needed with a low-persistence phosphor is more expensive because the electronics and control circuitry for the beam must have a faster response time.
When a computer must be small or portable, CRT technology becomes difficult to implement. The tube cannot be compressed front to back beyond a certain point without compromising image quality (as the scanning beam must move through a wider angle, the dots near the edge become elliptical instead of circular). Moreover, CRTs are highly subject to impact damage or breakage. Therefore, many portable computers use LCD technology instead.
LCDs are widely used in calculators, digital watches, and instruments as well as in computers. The screen consists of a sheet of crystallinematerial sandwiched between two sheets of glass. The crystals can assume two shapes: one when excited by an energy input, the other when unexcited. In their unexcited state, the crystals reflect most of the incident light and appear pale grey; when excited, they absorb light and appear black.
One advantage of LCDs is that the amount of energy required to make the crystals change shape is much less than that needed to turn on a dot on a CRT phosphor display. The lesser energy input, however, plus the fact that the LCD is merely reflecting or absorbing the ambient light rather than itself emitting light, means that LCDs can suffer from poor contrast, especially in marginal lighting conditions or when viewed at an angle. More recent designs use improved crystals or backlighting to obtain more contrast.
Active-matrix LCDs use TFT (thin film transistor) technology, in which each pixel has its own switch. The amount of light the LCD monitor produces is called brightness or luminance, measured in cd/ m² (candela per square meter).
Difference Between CRT and LCD
The crucial difference between CRT and LCD exist in their image forming technique. CRT displays image on the screen by making use of electron beam, however, LCD utilizes liquid crystals for the formation of an image on the screen.
Another major difference that exists between CRT and LCD is their size and dimension. CRT monitors are thicker and heavier but small in size than that of LCD.
We will discuss some other important differences between CRT and LCD but before that have a look at the rough draft of the contents to be discussed under this article.
Content: CRT Vs LCD
Comparison Chart
Definition of CRT
CRT is expanded as Cathode ray tube. It is a vacuum tube that produces images when a sharp beam of the electron which is highly focused hits the phosphor screen that is present at the front-end of the tube.
CRT was widely used earlier in TV and computer screens but is lesser used nowadays.
It consists of certain basic components that are responsible for the generation of an image on the screen. The figure below shows internal system involved in a CRT:
An electron gun assembly is present that produces a sharp beam of electrons. These electrons when moves inside the tube experience acceleration by the anode and focused towards the screen.
The two deflection plates are the reason for the movement of the beam horizontally and vertically. However, as the two movements are not dependent on each other thus the beam after hitting the screen, gets fixed anywhere on it.
When we talk about the screen of CRT then it is basically termed as the faceplate. The inner surface where the beam strikes is basically a phosphor coating. This phosphor is responsible for the conversion of electrical energy generated by the movement of the electron beam into light energy.
The flickering effect is more prevailing in CRT screens thus frequent refreshing of phosphor screen is required.
It is noteworthy in case of CRT that phosphor screen generates secondary electrons when electron beam hits it. So, in order to sustain an electrical equilibrium, the secondary emitted electrons must be collected which is done by aquadag.
Definition of LCD
LCD stands for Liquid Crystal Display. In LCD liquid crystal is utilized in order to generate a definite image on the screen. Liquid crystal is basically termed as the fourth state of matter. It permits the display to be very thin and thus supports numerous applications.
Among different liquid crystals, we prefer a nematic type liquid crystal display that is twisted at an angle of 90 degrees.
When we talk about LCD then its principle of working is such that light energy is not produced by LCD, despite light energy generated by an external source is controlled in order to have light or dark appearance at some particular areas.
Here, a layer of liquid crystal is placed between 2 polarizing films. When light emitted by an external source falls on the layer of liquid crystal then their combination generates a coloured visible image that is displayed on the screen.
An LCD is comprised of several layers shown in the diagram given below:
A backlight present at the back end of the screen emits light that after passing through the polarizing film gets polarized. The light can be horizontally or vertically polarized that rely on the type of polarization filter.
An external potential is provided to the liquid crystal. This potential changes the orientation of the molecules. After this polarized light is passed to the crystal that generates bright and dark spots at the screen of the display.
Key Differences Between CRT and LCD
Conclusion
CRT and LCD both have their separate advantages and disadvantage over the image formation technique. But LCD has replaced CRT very efficiently in the recent era. Despite LCD is more costly than CRT but due to its better image display and almost negligible flickering property, it is widely used.
Exactly What Do CRT and LCD Are A Symbol Of
Table of Contents:
Convert CRT monitor to LCD
Using a converter on my dedicated Arabian cabinet,so I can change out the old broken CRT monitor & replace it with a LCD monitor.
Video taken from the channel: Blacktooth Claymation
CRT LCD & LED
Video taken from the channel: devdun kariyawasam
Why do I still own a CRT TV?
Still not sure why this video is the top search result for “CRT TV”.
Sub to the Slug: https://www.youtube.com/subscription…
Follow on Twitter: http://www.twitter.com/attackslug
Video taken from the channel: attackslug
Arcade monitor swap, CRT to LCD Brad Tratzinski
In this video we will take the screen out of a dead Guerrilla War cabinet and replace it with an LCD computer monitor..
Music by my band Splitbelly: http://www.splitbelly.com.
If you are into retro gaming check out the RetroGamer3 show!
https://www.youtube.com/user/RetroGamer3.
Twitter: https://twitter.com/Geeklender.
Facebook: https://www.facebook.com/brad.tratzinski
Video taken from the channel: Brad Tratzinski
How Do CRTs & LCDs Work? | Living in the Past
Just how do those old skool, huge screens work? Are they the same as my thin LED screen. The answer is no and here is the why!
If you enjoy the content on the channel and site, then please consider sharing it where possible and appropriate and if you can please support my work on Patreon:-https://www.patreon.com/user?u=2632056.
Thanks For Watching..
Please Like & Subscribe and leave comments below.
Follow on twitter:https://twitter.com/N_X_G.
Watch in 1440/60 for the best experience.
Video taken from the channel: NX Gamer
How to work smps crt lcd led TV course demo video
This video in which I am explaine how to work smps.
join lcd led repairing online course.
see full details https://lapputer.com/.
see lcd led crt repairing artical http://electronictechniciansupport.blogspot.in/.
https://nevonexpress.com/ buy electronic component use promo code ARUN.
https://www.amazon.in/shop/arunkumarmaurya
Video taken from the channel: Arunkumar Maurya
Explain difference between CRT and LCD monitor in Urdu
Video taken from the channel: Asaan Computer Education
CRT and LCD are the types of display devices where CRT is used as conventional display devices whereas LCD is more recent technology. These are mainly differentiated based on the material they are constructed from and working mechanism, however, both are supposed to perform the same function of providing a visual form of electronic media. LCD stands for Liquid Crystal Display, which is a type of monitor available. It is much better than the CRT (Cathode Ray Tube) displays.
What is the difference between an LCD and a CRT monitor? CRT. CRT stands for Cathode Ray Tube and LCD stands for Liquid Crystal Display area unit the kinds of display devices wherever CRT is employed as standard display devices whereas LCD is. A cathode-ray tube (CRT) is a large, sealed glass tube.
While A LCD is a desktop/pc monitor that uses a liquid crystal display to produce images. These monitors produce sharp, flicker-free images. The main component of CRT is the vacuum tube while in LCD is the main component is liquid crystal.
CRT MONITORS: LCD MONITORS: Meaning: CRT stands for Cathode Ray Tubes. LCD stands for liquid crystal displays. Major Components: Vacuum glass tube Phosphor screen Electron gun Deflection plates. Glass plates Nematic liquid crystal Internal light source. Image Formation: Electron Gun is used to form images.
Liquid crystal is used to form images. CRT stands for “cathode ray tube” and they are a special kind of vaccuum tube that displays the image in old, standard TVs. LCD stands for “liquid crystal display” and it is a thin, flat electronic. An LCD monitor doesn’t have a glass screen, virtually eliminating any glare.
Burn: If the same image is left on a CRT for days, the image can burn into the display causing a permanent ghost image on the screen. Unlike a CRT an LCD monitor does is. Last Modified Date: July 19, 2020. A cathode ray tube (CRT) monitor is an analog computer display or television set with a large, deep casing. This type of monitor uses streams of electrons that activate dots or pixels on the screen to create a full image.
In contrast to this, liquid crystal display (LCD) monitors and plasma television sets, or flat panel displays, use newer digital technologies. A cathode-ray tube (CRT) is a large, sealed glass tube. While An LCD monitor is a desktop monitor that uses a liquid crystal display to produce images.
These monitors produce sharp, flicker-free images. Looking for online definition of CRT or what CRT stands for? CRT is listed in the World’s largest and most authoritative dictionary database of abbreviations and acronyms.
CRT What does CRT stand for? Cardiac Resynchronization Therapy (defibrillator technology used to correct life-threatening cardiac arrhythmia) CR. LCD stands for LED and CRT Display. LCD is defined as LED and CRT Display rarely.
LCD stands for LED and CRT Display. LCD screens have replaced heavy, bulky cathode ray tube (CRT) displays in nearly all applications. LCD screens are available in a wider range of screen sizes than CRT and plasma displays, with LCD screens available in sizes ranging from tiny digital watches to very large television receivers.
List of related literature:
The image on any monitor or screen, whether the traditional analog cathode-ray tubes (CRT) television or computer monitor, is the accumulation of rectangular dots called pixels (an abbreviated version of picture element).
1 What do CRT and LCD stand for?
by Santiago Remacha Esteras
Cambridge University Press, 2008
LCD versus CRT Displays: A Comparison of visual search performance for colored symbols.
by Andrew Sears, Julie A. Jacko
CRC Press, 2007
CRT plot A computer-generated drawing or graph projected onto the screen of a cathode ray tube.
by Ramesh Bangia
Laxmi Publications Pvt Limited, 2010
D. LCD stands for liquid crystal display.
by Glen E. Clarke, Edward Tetz, Timothy L. Warner
Wiley, 2019
Differentiate between CRT and LCD monitors.
by I. T. L. Education Solutions Limited, Itl
Pearson Education, 2005
cathode-ray tube Abbreviated CRT.
by Editors of the American Heritage Dictionaries
HMH Books, 2006
LCD, abbreviation for liquid crystal display, a video display device that is more compact than and uses less electrical power than the conventional cathode ray tube (CRT).
Difference Between CRT and LCD
Main Difference – CRT vs. LCD
CRT and LCD are two display technologies used by monitors. CRT is an older technology. For domestic applications, CRT screens have largely been replaced by LCD and plasma screens. However, CRTs continue to be used in science and medicine, where they are used in as cathode ray oscilloscopes (CROs). The main difference between CRT and LCD is that the CRT screens use electron guns to shoot beams of electrons in order to display images whereas LCD screens use the “twist” in liquid crystals to display the images.
What is CRT
CRT stands for cathode ray tube. In CRTs, there are heated metal filaments called cathodes. These filaments emit electrons which are then accelerated by anodes, forming beams of electrons. An anode-cathode pair producing an electron beam is called an electron gun. The intensity of the electron beam can be controlled by changing the voltage applied to the cathode.
These accelerated electrons travel through a vacuum and strike the television screen. The screen of a CRT is coated with a phosphor, so that when electrons strike the screen, a glow is produced. The brightness of the glow depends on the intensity of the electron beam. The screen is made of many pixels, each pixel consisting of regions coated with different phosphors that would give off a red, green or blue light when electrons strike it. There are three electron beams produced by three electron guns, each beam made to strike a particular phosphor and produce a specific colour. Since the blue, green and red lights are produced in a small region we do not see the individual red, green and blue lights. Instead, depending on how much red, green and blue is present, we can see various colours.
To make sure that electrons from each beam ends up on the intended pixel and not on a neighbouring pixel, a shadow mask is used. This consists of a metal sheet with holes, and it sits behind the screen (some CRTs make use of a filter called aperture grill instead of a shadow mask). To produce an image, electron guns need to illuminate one pixel at a time. They do this at a very fast speed, however, so that we do not notice each pixel lighting up one by one.
A CRT computer screen (left) alongside a CR television screen (right)
The following video gives a good explanation of how a CRT works, along with animations:
What is LCD
LCD stands for liquid crystal display. An LCD has two polarising filters placed behind the screen, with their angles of polarisation perpendicular to each other. Normally, if two polarising filters are placed in this way, light cannot reach the screen. However, LCDs have a material called “twisted nematic liquid crystals” sandwiched between these two polarising filters. Liquid crystals are a special type of molecules which are arranged like molecules in a solid, although they have the ability to move about. In particular, twisted nematic liquid crystals can twist. Because they twist, they rotate the plane of polarisation of light passing through them.
In LCD screens, the liquid crystals are placed in such a way that their twist allows the light coming through one polarising filter to pass through the other filter. The “amount of twist” in the molecules, and thereby how much of the light passes through the filters, can be altered by means of a potential difference applied across the liquid crystal layer. The diagram below shows the different layers present in an LCD screen:

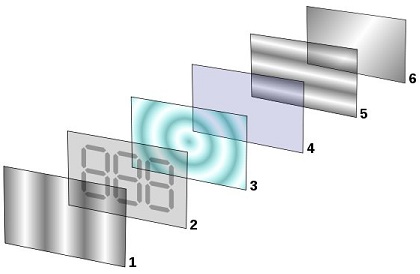

The components of a twisted nematic liquid crystal display (1 – Polarizing filter, 2 – Electrodes (here, they are constructed to a shape to display numbers), 3 – Layer of liquid crystals, 4 – Electrodes, 5 – Polarizing filter, 6 – Light reflector)
Just like a CRT, the LCD screen is also made of many pixels, each pixel consisting of three subpixels to produce red, green and blue light. Each subpixel is given an electrode so that by altering the voltage of this electrode, it is possible to alter the brightness of each coloured subpixel. The following video describes how an LCD screen works, with animations:
Difference Between CRT and LCD
Mechanism of Operation
CRT screens use electron guns to shoot a beam of electrons onto the screen. The screen is coated with a phosphor, which glows when electrons strike it.
Image Fidelity
Contrary to popular belief, CRT screens are technically capable of producing better-quality images with a high contrast, since they do not need to be backlit, like LCD screens.
CRT screens cost more to produce, and they consume much more power compared to LCD screens.
CRT screens are bulkier and heavier compared to LCD screens.
